| Place of Origin: | China |
| Brand Name: | KRIPAL |
| Certification: | VDE,SEMKO,CE CERTIFICATE,CB TEST REPORT |

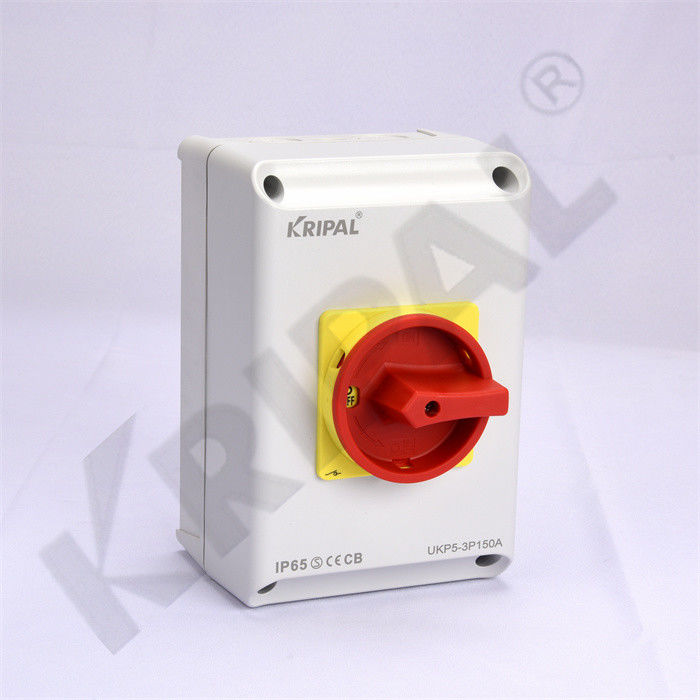

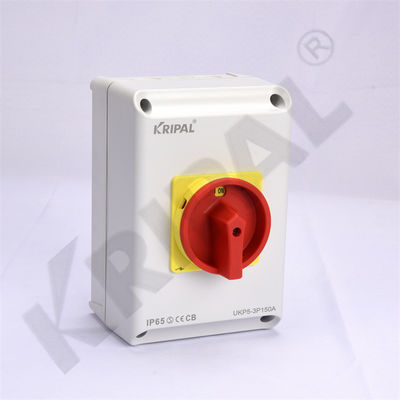

| Model Number: | UKP5-363 |
| Minimum Order Quantity: | 1000 pcs |
|---|---|
| Price: | negotiable |
| Packaging Details: | Each unit packed in a individual box |
| Delivery Time: | 20 days and depends on ordering quantity |
| Payment Terms: | T/T, L/C, D/P |
| Supply Ability: | 100000 pcs per month |
| Rated Current: | 63A | Pole: | 3P |
|---|---|---|---|
| Voltage: | 230-440V | Protection Degree: | IP65 |
| Frequency: | 50/60Hz | Material: | PC,Copper |
| Highlight: | IP65 Single Phase Changeover Switch,440V Single Phase Changeover Switch,PC 3 Pole Isolator Switch |
||
| Brand Name | KRIPAL |
| Model Number | UKPN0/1/3/5 |
| Type | Load Isolation Switch |
| Number of poles | 3P,4P |
| Current | 10A,16A,20A,25A,32A,40A,50A,63A,80A,100A,125A,150A |
| Frequency | 50/60Hz |
| Protection | IP65 |
| Material | PC,Copper |
| Standard | IEC/EN 60947-3, AS/NZS 3947 |
| Identification | VDE,SEMKO,CE CERTIFICATE,CB TEST REPORT |
| Warranty | One and a half years |
| Current(A) | Rated Voltage(V) | Model | |
| 3P | 4P | ||
| 10 | 230-440V | UKPN0-310 | UKPN0-410 |
| 16 | 230-440V | UKPN0-316 | UKPN0-416 |
| 20 | 230-440V | UKPN0-320 | UKPN0-420 |
| 20 | 230-440V | UKPN1-320 | UKPN1-420 |
| 25 | 230-440V | UKPN1-325 | UKPN1-425 |
| 32 | 230-440V | UKPN1-332 | UKPN1-432 |
| 32 | 230-440V | UKPN3-332 | UKPN3-432 |
| 40 | 230-440V | UKPN3-340 | UKPN3-440 |
| 50 | 230-440V | UKPN3-350 | UKPN3-450 |
| 63 | 230-440V | UKPN3-363 | UKPN3-463 |
| 63 | 230-440V | UKPN5-363 | UKPN5-463 |
| 80 | 230-440V | UKPN5-380 | UKPN5-480 |
| 100 | 230-440V | UKPN5-3100 | UKPN5-4100 |
| 125 | 230-440V | UKPN5-3125 | UKPN5-4125 |
| 150 | 230-440V | UKPN5-3150 | UKPN5-4150 |
①Surface installation(insulation enclosure assembled)
②Parallel and level installation(fix in front of it)
③Rear installation(fix at the back of it,door linkage or cover linkage)
1.Safe and reliable: The terminal with protective cover conforms to VDE0106 to ensure the safety of finger touch.
2.Flexible application:800 standard contact combinations are available,with an almost unlimited number of switch combinations.
3.Complete variety:according to the power capacity classification,can provide the most economical solution for different projects;there are a variety of different installation methods of the nameplate,can be flexible to meet the needs of specific applications.
4.It has a variety of uses in industrial machinery and equipment.For example,when used as maintenance switch and insurance switch,3 padlocks can be installed in O part to ensure the personal safety of users.
5.It can be used reliably in lighting equipment,heating equipment and motors reliably,in addition,they also can switch the motor(AC-3) derectly,its high on-off ability can ensure the work reliability at frequently making and breaking.
Applied to Power distribution equipment.
Applied to power systerm.
Applied to Construction site.
Applied to Port and pier.
Applied to Machinery industry.
Applied to Large modern buildings.
Applied to Large public space.
Applied to Transportation equipment.
| Lead Time | Normally 20 days after received your fund, but mostly depends on your quantity |
| Leading Port | Ningbo or Shanghai by sea or by air. If any other loading port please kindly advise and the extra inland transportation freight will be added accordingly. |
| Trade Term | EXW, FOB, CIF as customer need |
| Payment Term | T/T 30% as deposit,and 70% before delivery. |
| Packaging | Neutral carton, or according to customer requirements |
| Shipping | By Air, by sea, by express |
1. Strong production capacity and strict quality control system;
2. Well-trained and experienced staffs to answer all your inquires;
3. After-sale tracking service for all of our clients;
4. OEM & ODM are available; there is an our own mould tooling center in KRIPAL factory;
5. Solved the problem with you during using our products.
Zhejiang kripal Electric Co., Ltd. was founded in 1992, and now has two production bases, Yueqing in Wenzhou and Xianju in Taizhou. The company has more than 500 employees, including over 10 senior engineers, 30 professional technicists and 30 senior executives, covering an area of more than 15000 square meters. The company has passed ISO9001 quality system certification, and serves customers with high-quality service, innovative electrical solutions and competitive prices. Therefore, the products are exported to Europe, Australia, America, Africa, Oceania, Southeast Asia, Hong Kong, Macao and Taiwan, with good brand effect in the local area, and won the title of Zhejiang export famous brand enterprise. Our mission is to strive to realize the dream of professional electrical world brand, and strive to improve our company's share in the global market. Welcome to cooperate with kripal to create a better tomorrow.
